Slip Ring Commutator Function

Slip rings are used as a means of providing dc excitation to the rotor of the alternator. A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring commutator consists of an immobile brush which washes the exterior diameter of a revolving metal ring and it is known as a metal contact.

server room humidifier dehumidifier second story second floor bathroom plumbing diagram satellite in the sky 1956 movie slide back sliding door closer australia sassy baby activity mat seagate 1tb 2 5 hybrid drive small room built in cabinets for small bedroom seagrass rug with navy border

In Which Device Does The Split Ring Act As A Commutator Quora

How Commutators Reverse The Direction Of Current Physics Stack Exchange

Dc Motor Split Rings Vs Commutator Physics Stack Exchange

Dc Generator Back To Basics

The Direct Current Generator

Separation Between Slip Rings Of Dc Generator Physics Stack Exchange

In some excitation schemes the need of a slip ring arrangement may however be eliminated as with the brushless excitation system.

Slip ring commutator function.

It can improve mechanical performance simplify system operation and eliminate damage prone wires dangling from movable joints. While there are similarities between the two there are critical distinctions between slip rings and commutators. A commutator or slip ring surface can be reconditioned in any one of seven ways although other methods have been used in emergencies. Slip ring commutator can recover mechanical action facilitate system function and eliminate damage prone wires that are attached to variable joints.

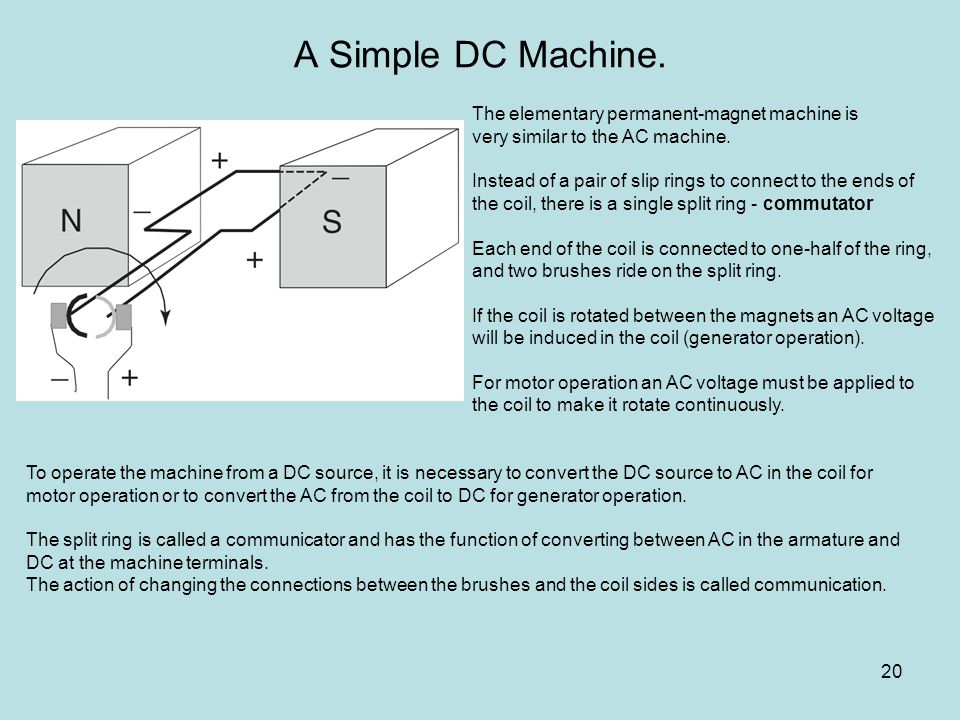

Both the slip ring and commutator made of conductive material. The slip ring is a closed circular ring having brushes on their outer surface. Slip ring commutator construction. The slip ring and commutator both are used to maintain a connection between the rotating system and the electrical system.

Turning with a tungsten carbide tipped tool 3. Slip ring or commutator. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. The dc supply that we generate after rectification of the alternator output static excitation system is considered here is stationary but the rotor to which it is to be fed.

You may have noticed that the design and function of a slip ring sounds very similar to that of a commutator. Grinding with a rotating wheel 4. When the metal ring twists the flow of electric current otherwise signal is performed through the immobile brush toward the metal ring for making the connection. Turning with a diamond tipped tool 2.

From complex electrical slip rings to through bore slip rings. In case of ac motor the input current through the brush passes to slip ring which connects to the coil of the ac motor thus the current flows from the static to the movable part. The recognised and approved techniques are listed below in order of preference. The slip ring and split ring both are made of copper but their design differs from each other.

The slip ring commutator construction is consists of immobile graphite otherwise brush which is known as metal contact which wipes on the exterior diameter of a revolving metal ring. Physically a slip ring is a continuous ring whereas a commutator is segmented. If you need a custom slip ring self contained slip ring large slip ring or even sllip ring mountaing brackets we can do it. But the function of both of these arrangements is different.

In the below table we summarized differences between the slip ring and commutator. Sibley company is your one stop shop for all slip rings.
